SUPER B LITHIUM BATTERY Lifepo4 340AH NOMIA

SUPER B LITHIUM BATTERY Lifepo4 340AH NOMIA

€3,997.00 EUR
€4,699.00 EUR €3,997.00 EUR
Sale Sold out
Tax included.

AVAILABILITY: In stock / express delivery offered within 48 hours

SUPER B batteries have their origins in motorsports, they were created to be the best batteries in terms of weight, compactness, performance, quality of finish and materials.

Their BMS electronic management is also among the most advanced, making it the top of the range lithium battery.

This range is suitable for auxiliary battery applications for vans, camper vans, boats for professional or leisure use.

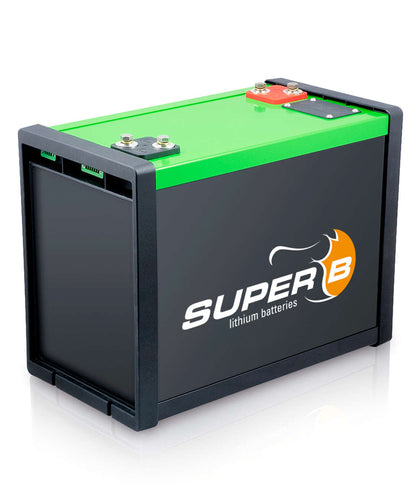

The Nomia 12V340Ah battery is a rechargeable lithium-iron-phosphate (LiFePO4) battery with a nominal capacity of at least 340Ah. The unique combination of advanced technology and intelligent software makes this lithium battery a robust, safe and easy-to-use energy storage solution.
  • Nominal capacity
    340 Ah
  • Nominal voltage
    12.8 V
  • Dimensions (LxWxH)
    417 x 227 x 314 mm / 16.4” x 8.9” x 12.4”
  • Open circuit voltage
    13.2V

ELECTRICAL SPECIFICATIONS

  • Nominal capacity
    340 Ah
  • Open circuit voltage
    13.2V
  • Self-discharge
    <3% per month
  • Cycle time
    >3500 cycles (at 1C charge/discharge, 100% DoD)
  • Voltage
    12V

MECHANICAL SPECIFICATIONS

  • Dimensions (LxWxH)
    417 x 227 x 314 mm / 16.4” x 8.9” x 12.4”
  • Weight
    33 kg / 72.7 lbs
  • Housing
    GFRP
  • Protection index
    IP50
  • Cell type / chemistry
    Prismatic - LiFePO4

(UN)LOADING SPECIFICATIONS

  • Charging method
    CCCV
  • Charging voltage
    14.3V - 14.6V
  • Max. charging current
    300A
  • End of discharge voltage
    10 V
  • Direct discharge current
    300A
  • Intensity of discharge pulses
    900A (30 sec)

TEMPERATURE SPECIFICATIONS

  • Charging temperature
    0°C to 60°C / 32°F to 140°F
  • Discharge temperature
    -30°C to 60°C / -22°F to 140°F
  • Storage temperature
    -20°C to 45°C / -4°F to 113°F

COMPLIANCE SPECIFICATIONS

  • Certifications
    CE, FCC, UN 38.3, UN ECE R10.06, UL 1642 (Cells)
  • Transport classifications
    UN3480

GENERAL PRODUCT SPECIFICATIONS

  • EAN-13
    8718531362314
  • Battery designation
    IFpP/41/173/205/ [2P4S]M/-30+60/95
