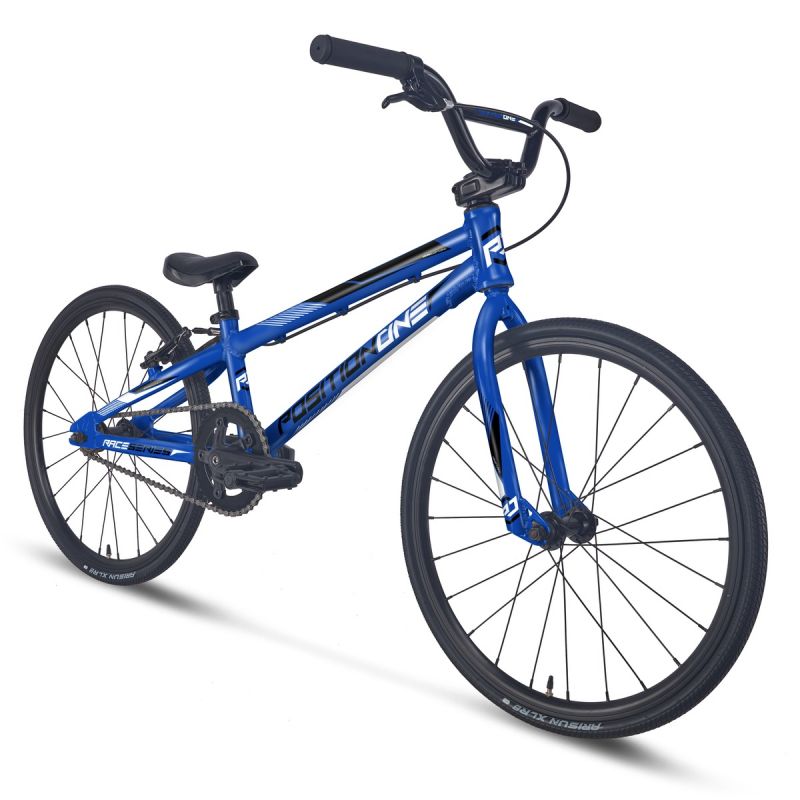

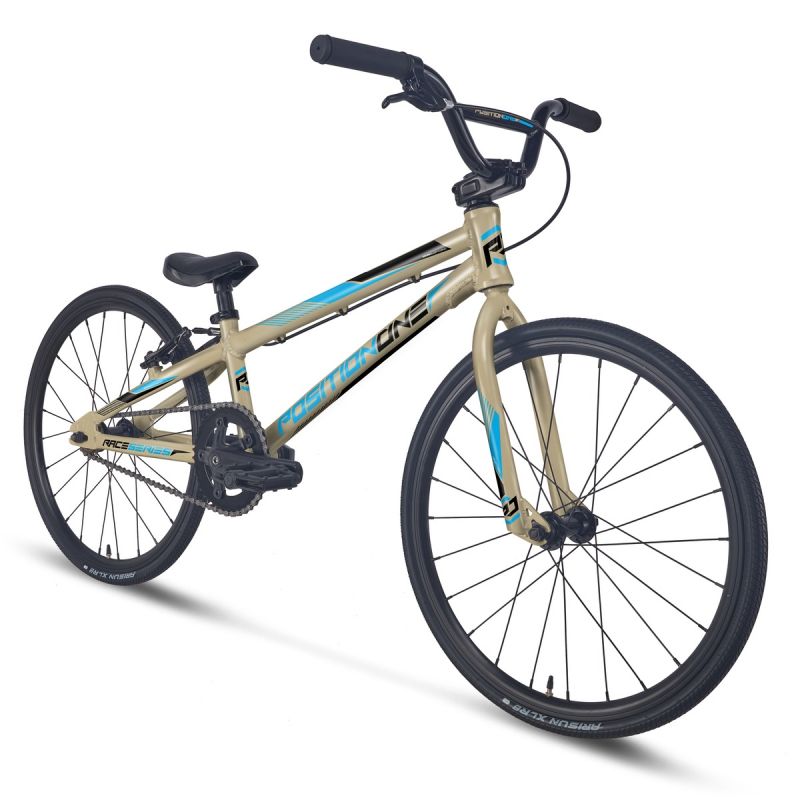

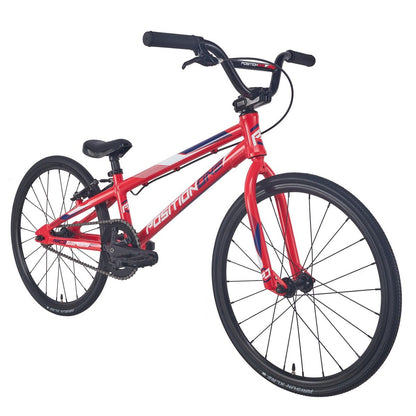

BMX Position One Race Junior
BMX Position One Race Junior
Regular price
€479.99 EUR
Regular price
Sale price
€479.99 EUR
Taxes included.
Quantity
Couldn't load pickup availability
AVAILABILITY: In stock / Free 24/48h express delivery!
The POSITION ONE Race bikes were created specifically to introduce beginners to BMX Racing thanks to a range with carefully designed geometry, offering you the best value for money in an entry-level BMX. Featuring a 6061 aluminum frame with integrated steering, it is equipped with a Chromoly fork and handlebar, a 3-piece crankset, double-wall rims, V-brakes and ARISUN XLR8 tires.
FEATURES :
- 6061-T6 Junior Top Tube Aluminum Frame 18.75"
- 1" Integrated Steering
- Full Chromoly fork and handlebar
- Aluminum Stem 40mm Top Load
- 3-piece aluminum crankset 155mm
- 40-tooth steel crown
- 20x1-1/8" Aluminum Double Wall Rims
- Euro box with square axle
- 16-tooth freewheel rear hub
- ARISUN XLR8 20x1-1/8" tires
- KMC Channel
RECOMMENDED HEIGHT : 1m22 – 1m37
WEIGHT : 7.7 kg without pedal
SPECIFICATIONS:
|
FRAME
|
Junior 18.75" Top Tube 6061 T6 Alu, Integrated 1" Steering, Underglaze Stickers |
|
FORK
|
Full Cr-mo, 1" head tube |
|
DIRECTION
|
Integrated IS 42/42 Reducer 1" Annular Bearings |
|
HANDLEBAR
|
Cr-mo Height 4.25", Diameter 22.2mm, Width 22.75", 8° Back Sweep & 2° Up Sweep |
|
HANDLES
|
Single Ply 130mm without collar |
|
Gallows
|
Alu 6061 T6 40mm Top Load |
|
HOUSING
|
Top Load, 1" Fork Stem, 22.2mm Diameter, 40mm Length, 6061 T6 Aluminum |
|
CROWN
|
Steel 40 teeth 5 points BCD 110mm thickness 3mm |
|
CRANKSET
|
3 pieces 155mm Alu, Chromo bottom bracket screws |
|
PEDALS
|
9/16" Nylon Platform |
|
CHAIN
|
KMC Z33 1/2"x3/32" |
|
FREEWHEEL
|
16 Tooth Freewheel 1/2"x3/32" |
|
FRONT HUB
|
Mini 24H, Double contact seal bearings, 3/8'' (10mm) axle/nuts |
|
REAR HUB
|
Mini 24H, Double contact seal bearings, 3/8'' (10mm) axle/nuts |
|
RAYS
|
Front 205mm, Rear 203mm, 14 Gauge, Steel |
|
HEADS
|
16mm, 14 Gauge, Steel |
|
RIMS
|
Double wall Alu 24H 20x1-1/8" Presta valve |
|
TIRES
|
Arisun XLR8 20''x1-1/8'' Rigid Rod |
|
ROOMS
|
20''x1-1/8'' Presta Valve |
|
LEVER
|
Junior/Expert Aluminum |
|
YOKE
|
V-Brake 95mm |
|
SADDLE/STEM
|
Mini Nylon combo Aluminum seat post 25.4mm |
|
NECKLACE
|
28.6mm Alu 1 screw |
